Wicket AIO, Polished Amber Ultem, Top Fire Button, w/ Evolv DNA60 Chipset, by Limelight Mechanics

A masterful blend of technology and materials.

Robust, light weight, and packed with innovative features, the Wicket AIO is designed with daily use in mind.

Style

The Wicket AIO is a single 18650 regulated Boro AIO (All-In-One) mod, compatible with all Boro-style tanks.

Button Placement

The Wicket AIO offers two button positions which are easy to switch between, simply by changing the faceplate. The button configuration that comes with this particular unit, is the "Top" button location, where the button is located on the face plate just above the Boro Tank Window.

Design

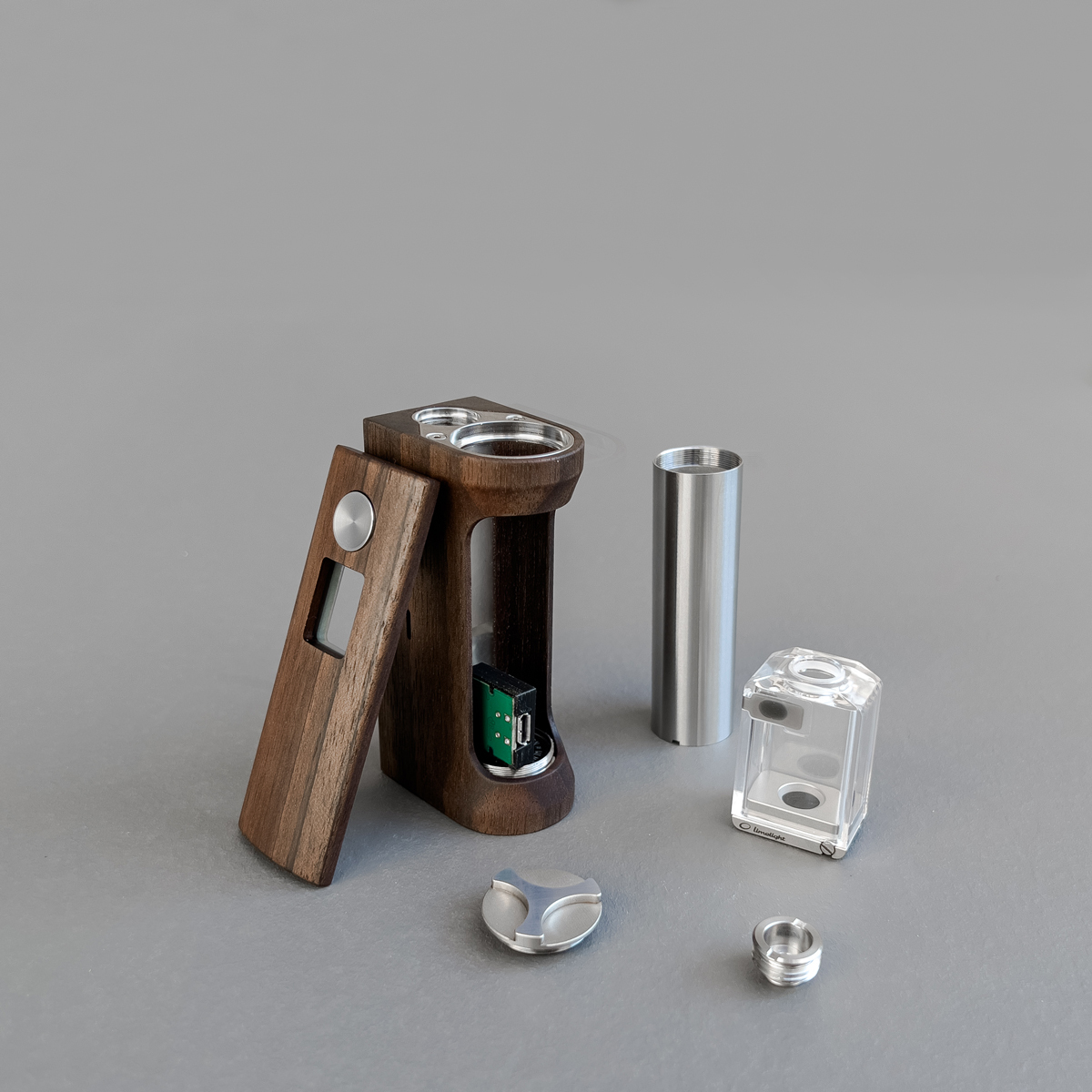

This minimalistic mod shows only the firing button and Boro Tank Window Cutout on the front, and the OLED display screen is located on the bottom. The up/down adjustment buttons are hidden behind the magnetic face plate, while the Evolv DNA60 data port is tucked away behind the battery tube. A Micro-USB dongle is included to access the data pins for Escribe configuration. There are no visible screws on the body, and no glue is used in the manufacturing and assembly process, thanks to smart engineering behind the Wicket AIO design.

Note: This image shows how the included USB data dongle attaches to the Evolv DNA60 chipset for data management via Evolv's Escribe software. The AIO Boro Tank shown in the photo is NOT included in this package, and is only displayed as a representative of a possible configuration of this device, and can be purchased >> HERE <<.

The Body

This polished Amber Ultem variant is machined from a single solid block of Ultem. With most of the block's material being machined off, a thin yet very tough and resilient shell remains. A final polish of the Ultem finishes it, giving clarity into the mod, and revealing the rich coloured layers of the Ultem. Finished by hand for a premium finish.

Wicket AIO Dimensions:

• Height: 85 mm
• Width (maximum): 49 mm
• Depth: 29 mm

Magnetic Faceplate

The faceplate is held in place with strong Neodymium magnets, making it easy to remove for maintenance and access to your Boro Tank.

Liquid-Proof Electronics

The chipset compartment and the faceplate PCB are sealed off with silicone gaskets to minimize liquid incursions in the event of a tank leakage within the device.

Modular

The stainless steel tube visible through the cutout at the back of the mod can be easily changed with another design and matched with the fire button on the face plate, giving users an array of customizable options without the need for any tools. All other components, including the chipset cradle can be removed and serviced as required.

Chipset

This particular unit is powered by the Evolv DNA60 chipset.

Innovative Contacts

The Wicket AIO adopts a wireless design outside of the chipset compartment, meaning the current flow is established through mechanical contacts. The battery tube and the top plate are connected through the battery cap, so please ensure the battery tube is tightened down all the way until it touches the top plate's contact surface.
